SA Series Accelerometers
Connect directly to any XR450 or XR5-SE Data Logger or three inputs of a data acquisition system (0 - 3.3 Vdc signal range).
- Triple Axis Accelerometers
- ±3 g and ±16 g models
- Includes Precision Temperature Sensor
- Cable length of 2.4 meter (8 ft) or 9.1 meter (30 ft).

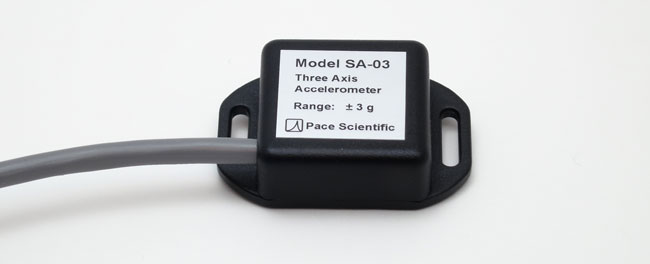

Pace SA-03 Accelerometer
Pace SA series tri-axis accelerometers measure g-force acceleration resulting from motion, vibration or shock, and the static acceleration of gravity for orientation sensing applications. Each output signal (X, Y and Z) is individually calibrated and internally buffered.
SA series accelerometers are powered from the E terminal of a Pace data logger, or a dc voltage between 4 and 18 V. Current draw is under 0.5 milliamps.
Specifications - SA series Accelerometers
| Minimum Measurement Range | SA-03: ±3 g SA-16: ±16 g |
| Sensitivity | SA-03: 330 mV/g SA-16: 63 mV/g |
| Nonlinearity | ±0.3% of F.S. |
| 3 dB Bandwidth | 50 Hz; bandwidth can be modified from 0.5 Hz to 1000 Hz per customer request. Contact Pace for details. |
| Noise, X and Y Outputs | ±0.1% F.S. |
| Noise, Z Output | SA-03: ±0.2% F.S. SA-16: ±0.1% F.S. |
| Temperature Effects: Sensitivity | ±0.01% per °C |
| Temperature Effects: O g Offset | ±1mg per °C |
| Input Power, Voltage | 4 - 18 Vdc, reverse polarity protected (Pace data logger supplies 5v power) |
| Input Power, Current | ~0.4 mA |
| Warm Up Time | 20 ms |
| Output Signal Range | 0 to 3.3 Vdc |
| Nominal Output at Zero g | 1.65 Vdc [X, Y, and Z outputs] |
| DAQ input impedance | Minimum 100k ohms recommended for best performance |
| Wiring | Red: 4 - 18 Vdc power (E terminal) Black: Ground (C terminal) Brown or Yellow: X Axis Output (0-5 V input) Green: Y Axis Output (0-5 V input) White: Z Axis Output (0-5 V input) Blue: Temperature (Use C.rvt scaling table) Note: if Temperature sensor is not required, connect Blue wire to Ground (C terminal) or tape off. |
| Internal Temperature Sensor | Precision 30k NTC thermistor with ±0.1 deg C interchangeability. |
| Physical | Waterproof, epoxy-potted thermoplastic housing. |
| Environmental Protection | IP66 / NEMA 4X |
| Operating Temperature Range | -40 to 80°C (-40 to 176°F) |
| Mounting | Two mounting slots on base, spaced 1.685" (42.8 mm) center to center. Slots are 0.138" x 0.6" (3.5 x 15 mm) |
| Dimensions | 2.03" x 1.39" x 0.60" (52 x 35 x 15 mm) |
| Cable Diameter | 0.193" (4.9 mm) |
| Cable Color | Black |
| Cable Length | 8 FT (2.4 meters) or 30 FT (9.1 meters) |
| Part No. | Range | Cable Length | Temperature Sensor | Price $US |
|---|---|---|---|---|
| SA-03 | ±3 g | 8 FT (2.4 m) | Yes | 225. |
| SA-03-30FT | ±3 g | 30 FT (9.1 m) | Yes | 250. |
| SA-16 | ±16 g | 8 FT (2.4 m) | Yes | 225. |
| SA-16-30FT | ±16 g | 30 FT (9.1 m) | Yes | 250. |
Note: As of 11/2020, all models include a temperature sensor and "-T" was dropped from the part number.
XR5-SE limitation: The Log On Alarm(Fast) logging mode is not recommended for vibration applications and can result in loss of data. Contact Pace for details.
To monitor and trend vibration data using the XR5-SE Data Logger use the "Cycle (Fast)" logging mode. For example: Log readings at 100 Hz for 1 second, and repeat on a 2 minute cycle.
