PT8xx Series Temperature Probes
Connect directly to any Pace Data Logger. All probes utilize a precision
10k ohm thermistor.
Select Thermistor "B" (B.rvt) scaling for all PT8xx series probes.
PT8xx Series Temperature Probes
Connect up to eight probes to the XR5-SE Data Logger, and up to four probes to the XR440 or XR450 Data Logger.
Common to all PT8xx series Probes
- Resolution 0.025°C at 25°C
- No calibration required
- Probe cables may be extended using ordinary copper wire.

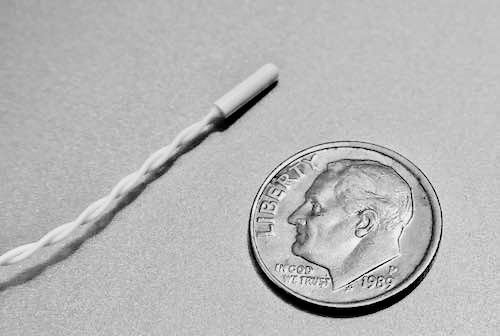

PT840
Miniature high-accuracy temperature sensor has low thermal mass for fast response. Not recommended for continuous immersion in water.
| Temperature range with highest accuracy | 0 to 50°C (32 to 122°F) |
| Accuracy | ±0.15°C from 0 to 50°C (32 to 122°F) |
Total system accuracy (Pace Logger + PT840 Probe) |
±0.2°C from 0 to 50°C |
| Rated temperature range | -40°C to 70°C (-4°F to 158°F)
Intermittent duty to 105°C (221°F) |
| Time constant in still air | 15 seconds |
| Time constant in still water | 2 seconds |
| Probe dimensions | 0.080 inch diameter (2.03 mm), 0.375 inch length (9.5 mm) |
| Probe construction | Precision thermistor epoxy potted in molded plastic sheath |
| Lead length | 3 feet (0.91 meter) |
| Wire gauge | 28 AWG |
| Wire insulation | PVC |
PT840 price: $25.

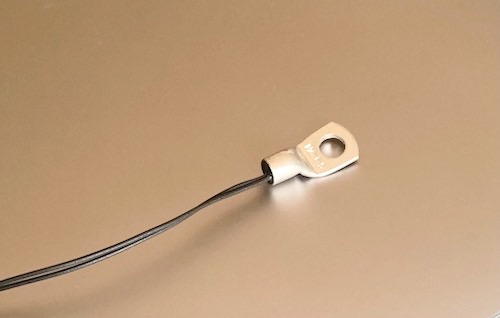

PT820
The PT820 is excellent for surface temperature measurement and general temperature measurement applications.
| Operating Temperature Range | -40°C to 125°C (-40°F to 257°F) |
| Sensor Accuracy |
At -40°C (-40°F): ±0.61°C (±1.1°F) At -20°C (-4°F): ±0.47°C (±0.85°F) At 0°C (32°F): ±0.44°C (±0.8°F) At 25°C (77°F): ±0.44°C (±0.8°F) At 85°C (158°F): ±0.61°C (±1.1°F) At 125°C (257°F): ±0.76°C (±1.4°F) |
Total system accuracy (Pace Logger + PT820 Sensor) |
At -40°C (-40°F): ±0.93°C (±1.7°F) At -20°C (-4°F): ±0.55°C (±1.0°F) At 0°C (32°F): ±0.47°C (±0.85°F) At 25°C (77°F): ±0.47°C (±0.85°F) At 60°C (140°F): ±0.56°C (±1.0°F) At 85°C (158°F): ±0.84°C (±1.5°F) At 125°C (257°F): ±1.6°C (±2.9°F) |
| Time constant | 7 seconds |
| Sensor dimensions | 0.39 inch width (10 mm), 0.79 inch length (20 mm) |
| Mounting hole | 0.205 inch diameter (5.2 mm) |
| Sensor construction | Precision thermistor epoxy potted in tin plated copper ring terminal |
| Lead length | 19.7 inches (500 mm) |
| Lead wire details | 28 AWG XLPE Insulated tin plated copper |
PT820 price: $15.

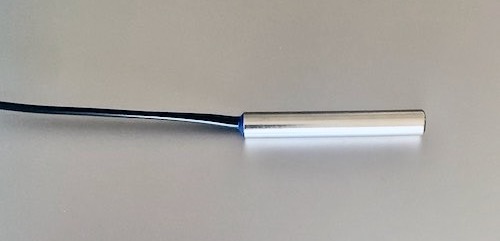

PT860
Rugged nickel plated brass probe with 10 FT Cable. Suitable for HVAC and general temperature applications. Excellent for applications subject to moisture due to condensation. Suitable for repeated freeze/thaw cycles in refrigeration, HVAC and applicance industries. Not recommended for continuous (long-term) immersion in water.
| Temperature range | -40 to 125°C (-40 to 257°F) |
| Probe Accuracy | ±0.2°C from 0 to 70°C (32 to 158°F) |
Total system accuracy (Pace Logger + PT840 Probe) |
±0.25°C from 0 to 70°C (±0.45°F from 32 to 158°F) |
| Time constant (typical) in stirred oil bath | 6 seconds |
| Probe dimensions | 0.25 inch diameter (6.35 mm) by 1.75 inch length (44.45 mm) |
| Probe construction | Precision thermistor, epoxy potted in nickel plated brass probe |
| Cable length | 10 feet (3.05 meters) |
| Cable type | 22 AWG, PVC insulated zipcord |
PT860 price: $75.
Extension Cable
Extension cable can be spliced to any of the above probes. We recommend 24 or 22 gauge two-conductor stranded copper cable for extensions of up to 100 feet (30 meters). Acceptable splicing methods include wire nuts, crimp connectors, hand twisting and taping, or solder.
